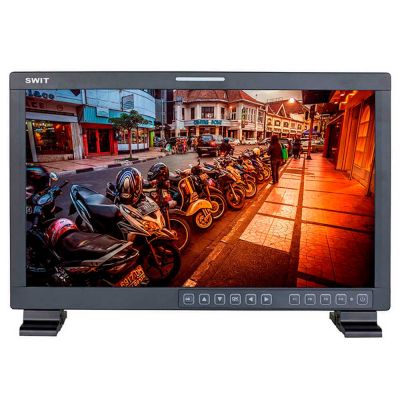

Swit FM-17 17.3 Full HD Film Production -näyttö

Swit FM-17 Film Production Monitor

- 17.3” 1920×1080 non-glaring LCD
- 8-bit LCD, 12-bit internal process
- 3G/HD/SD-SDI, HDMI input & output
- Build-in multi-camera logs to Rec.709
- DIT user 3DLUT cube upload by USB
- Waveform / Vector scope / Histogram
- 16-ch embedded audio meters
- Peaking focus assist with precision adjustment
- Exposure assist / Zebra / Blue only
- Anamorphic de-squeeze / Multiple markers
- USB firmware upgrade
- V-mount or 4-pin XLR or AC input
- Light weight, C-stand mountable (optional)

Input/Output Interfaces
3G-SDI, HDMI

FM-17 monitor supports:
- 3G/HD/SD-SDI input × 2
- 3G/HD/SD-SDI loop output × 1
- HDMI 1.3 input × 1
- 3.5mm analog audio input × 1
- 3.5mm analog audio output × 1
- RS485 UMD input × 1
- RS485 UMD output × 1
- USB-A LUT/Firmware input × 1
